SPECIFICATIONS

Audio Out: Stereo Headphone, Speaker

Backlight: LED

Brightness: 250cdm3,250cd/m

Certification: CE,FCC,RoHS

Contrast: 1000:1

Contrast Ratio: 1000:1

Display Size: 21.5

High-concerned Chemical: None

Inbox adaptor: Yes

Input: 4 X 3G-SDI

Model Number: ATEM215S-CO

Output: 4 X 3G-SDI

Plug Type: EU Plug,US Plug,AU Plug,UK Plug,KR,JP

Power Source: AC&DC,AC&DC

Resolution: 1920x1080 pixels

Supporting Language: Japanese,French,German,Italian,Spanish,Russian,English,Korean,Simplified Chinese

Viewing Angle: 89/8989/89

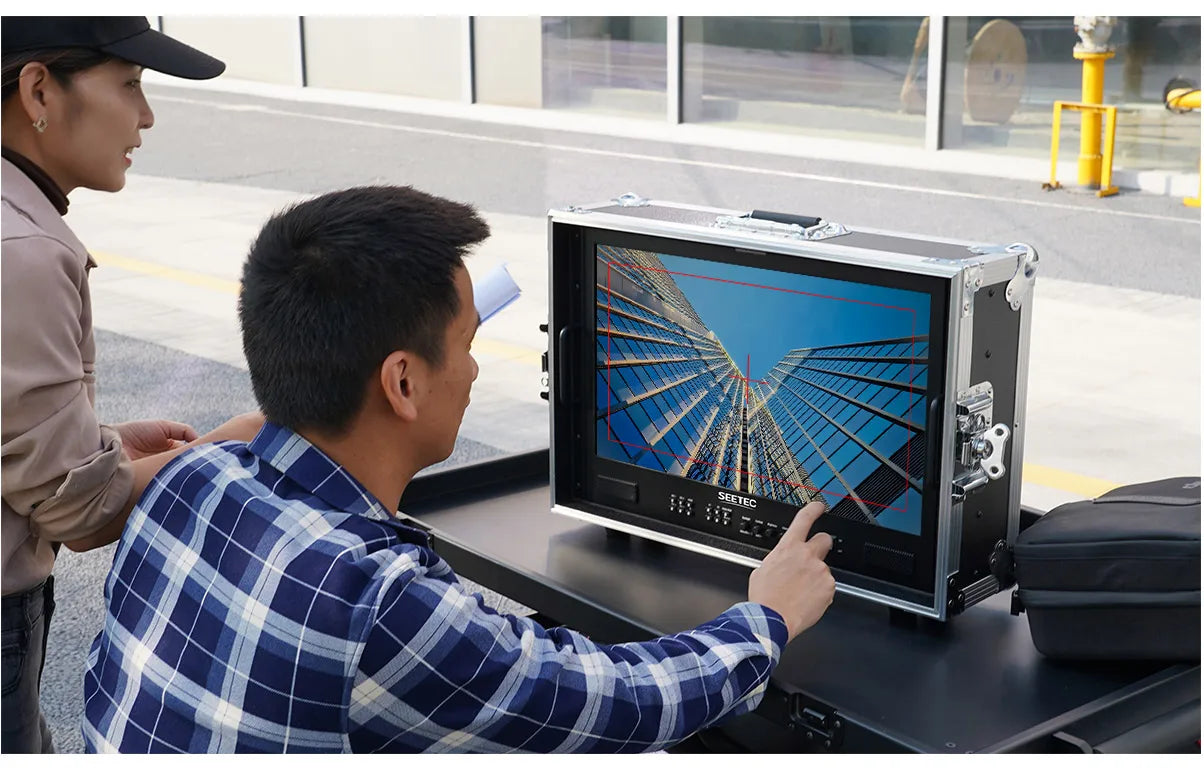

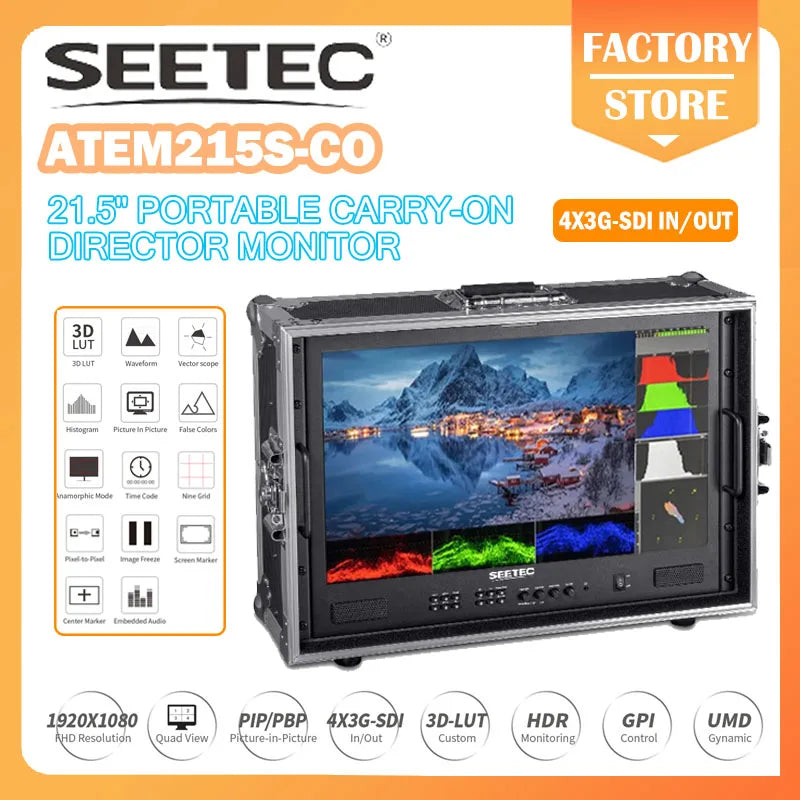

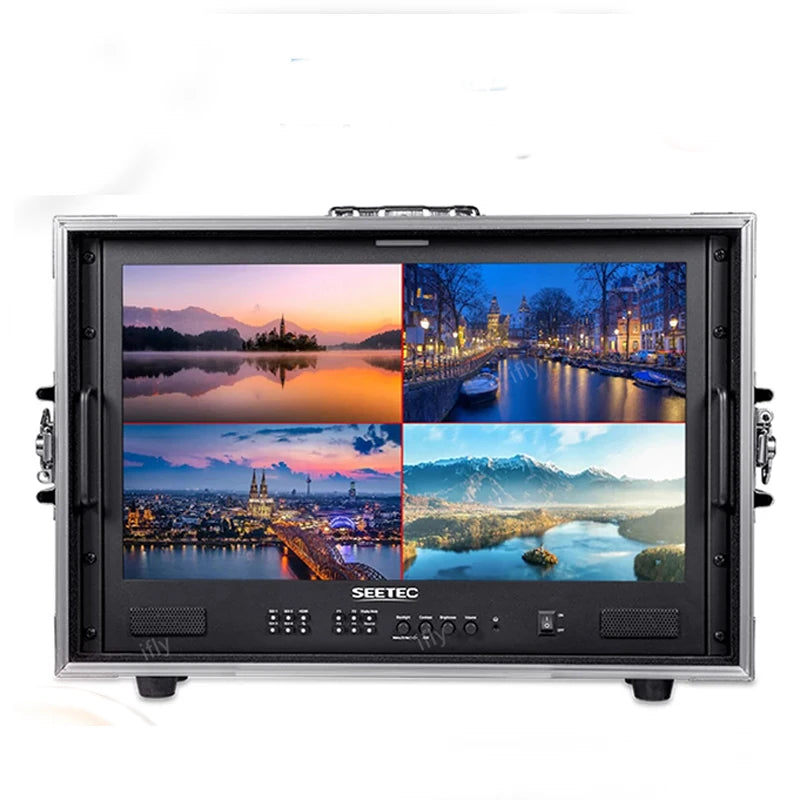

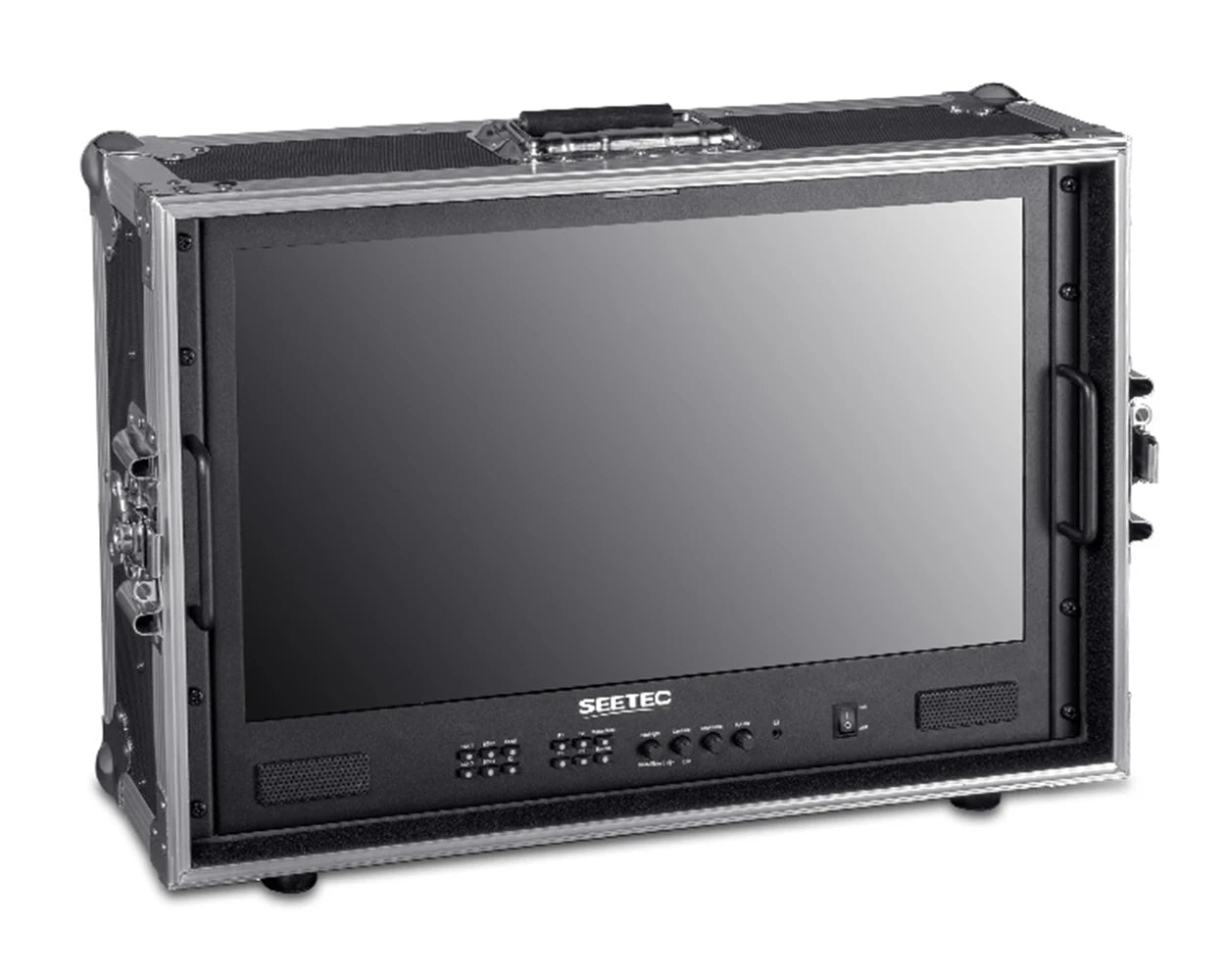

21.5"3G-SDI/HDMI Broadcast Director Monitor

Complete solution for multi-camera on set shooting, monitoring and post production

SEETEC ATEM215S-CO is a full HD broadcast carry-on monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. The portable aviation aluminum case can easily handle even harsh location shooting. It is an ideal monitor for film and television crews, broadcast and post-production!

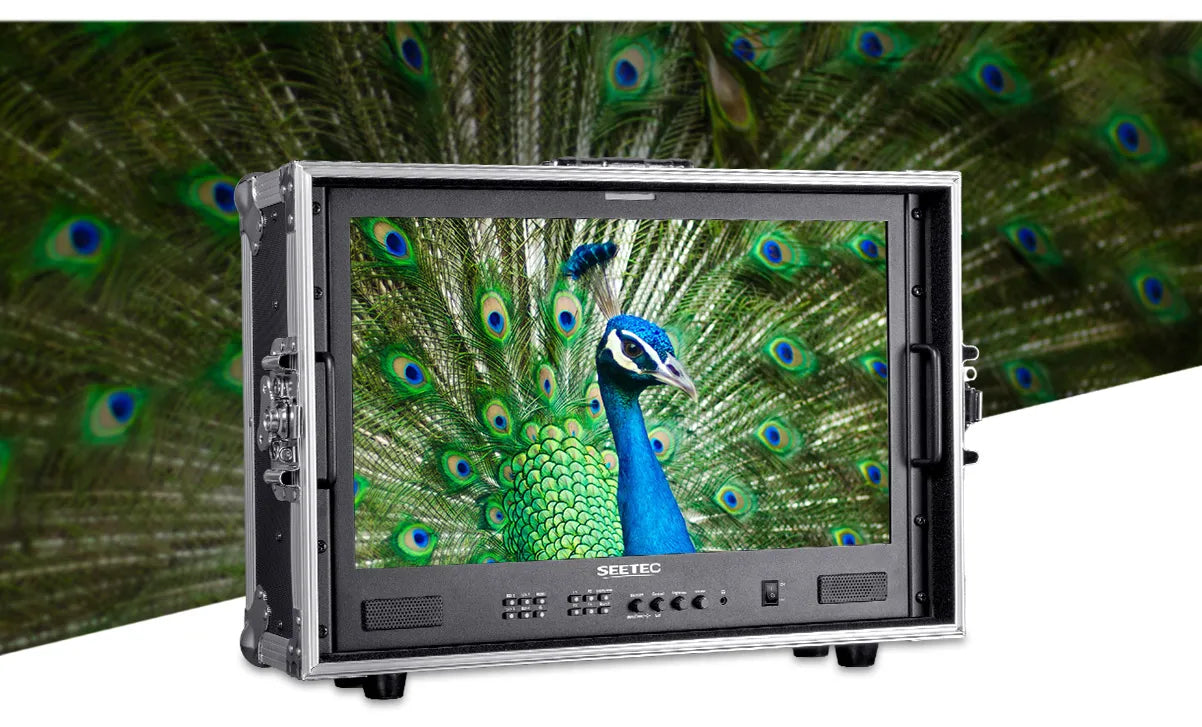

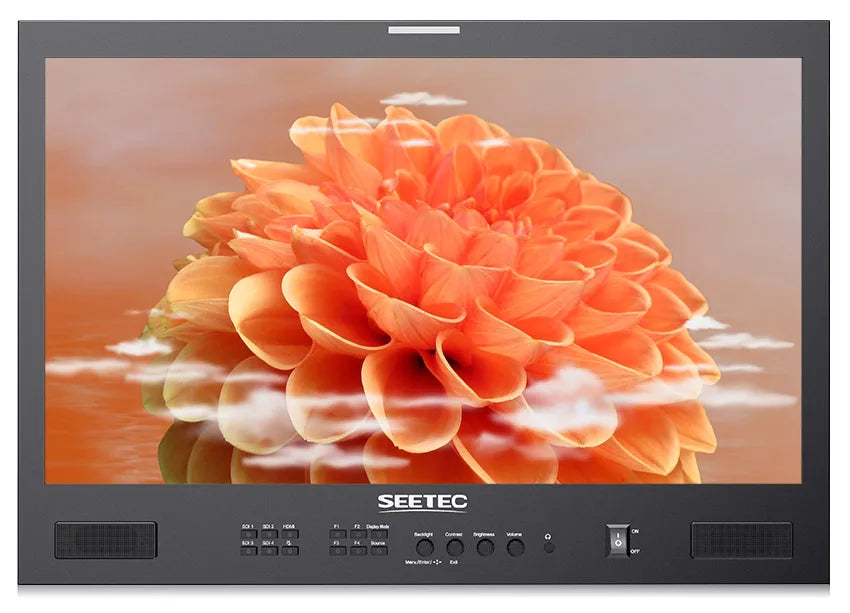

21.5-inch Full HD LCD

The ATEM215S-CO adopts a 21.5-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 250cd/㎡ brightness, 1000:1 contrast ratio, 178° wide viewing angle, allows you to see clearly no matter you monitor from which angle.

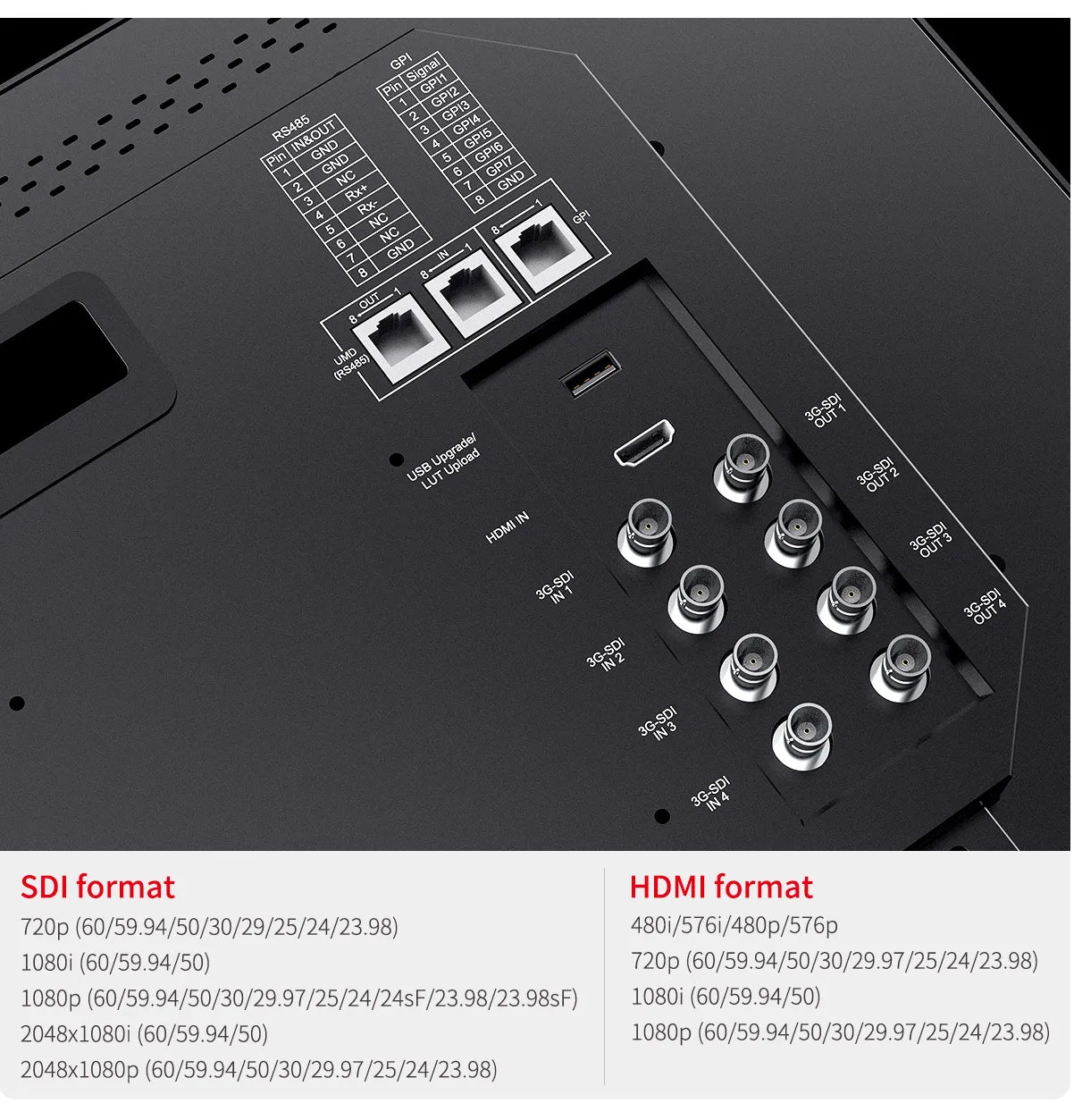

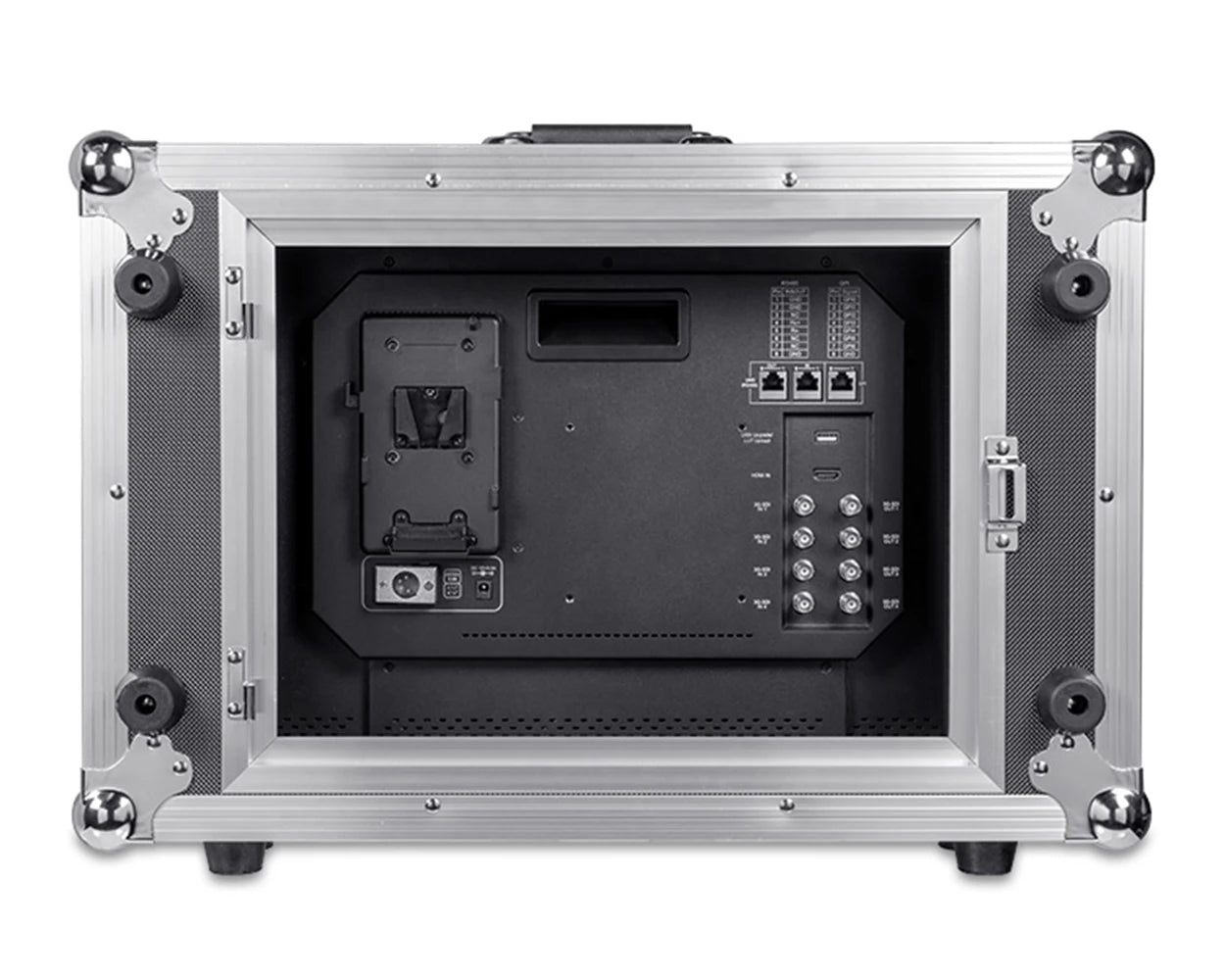

4X3G-SDI Inputs and Output

Perfect SDI monitoring

ATEM215S-CO monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.

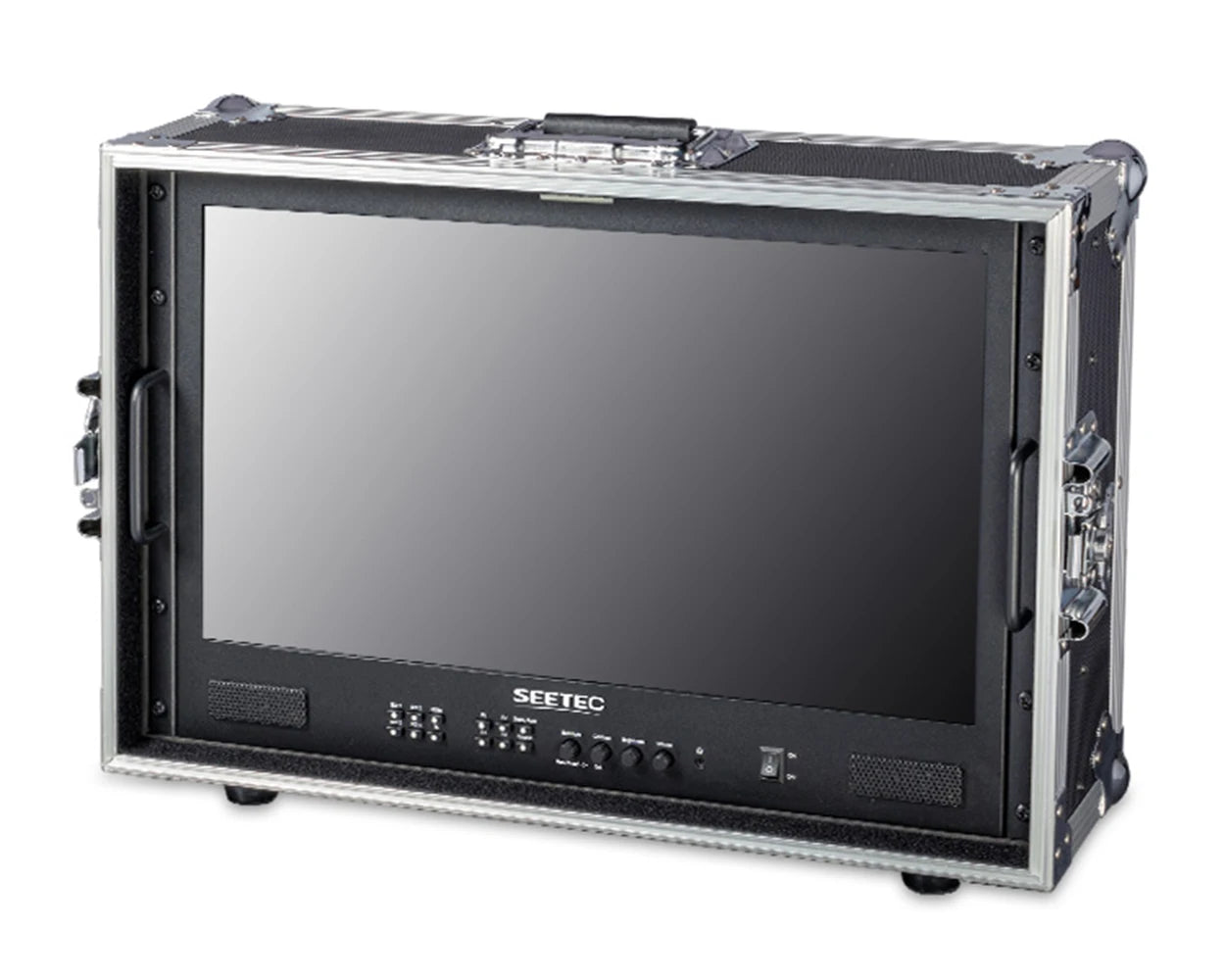

Portable Aviation Aluminum Case

Ideal choice for filming shooting

Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during on-set production. The ATEM215S-CO provides a aviation aluminium case, has the characteristics of dust-proof, waterproof, high temperature resistance, and corrosion resistance and so on. It is suitable for carrying and application in different environments, and provides a safer protection for the monitor.

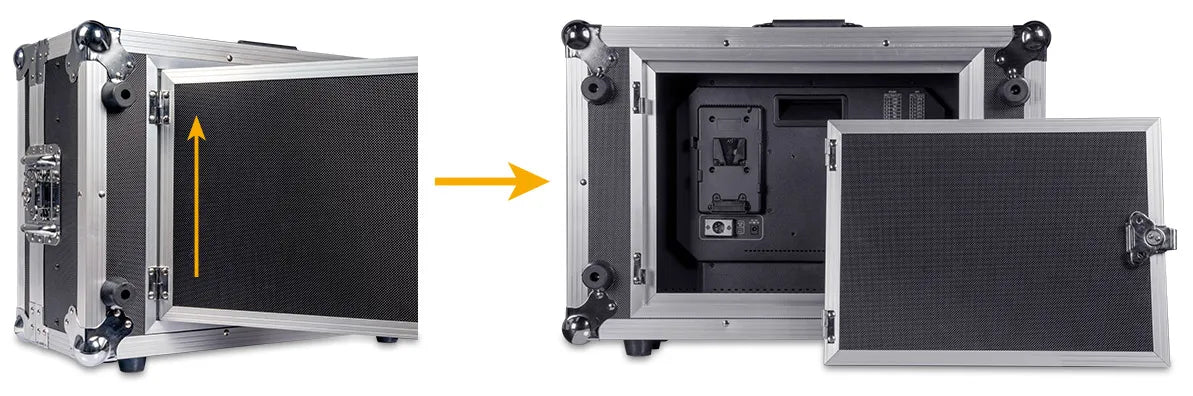

Quickly Disassemble and Assemble, Without Tools Required

The innovative combined structure design can quickly complete the disassembly and installation of the monitor, and easily to make the monitor use for both indoor and outdoor.

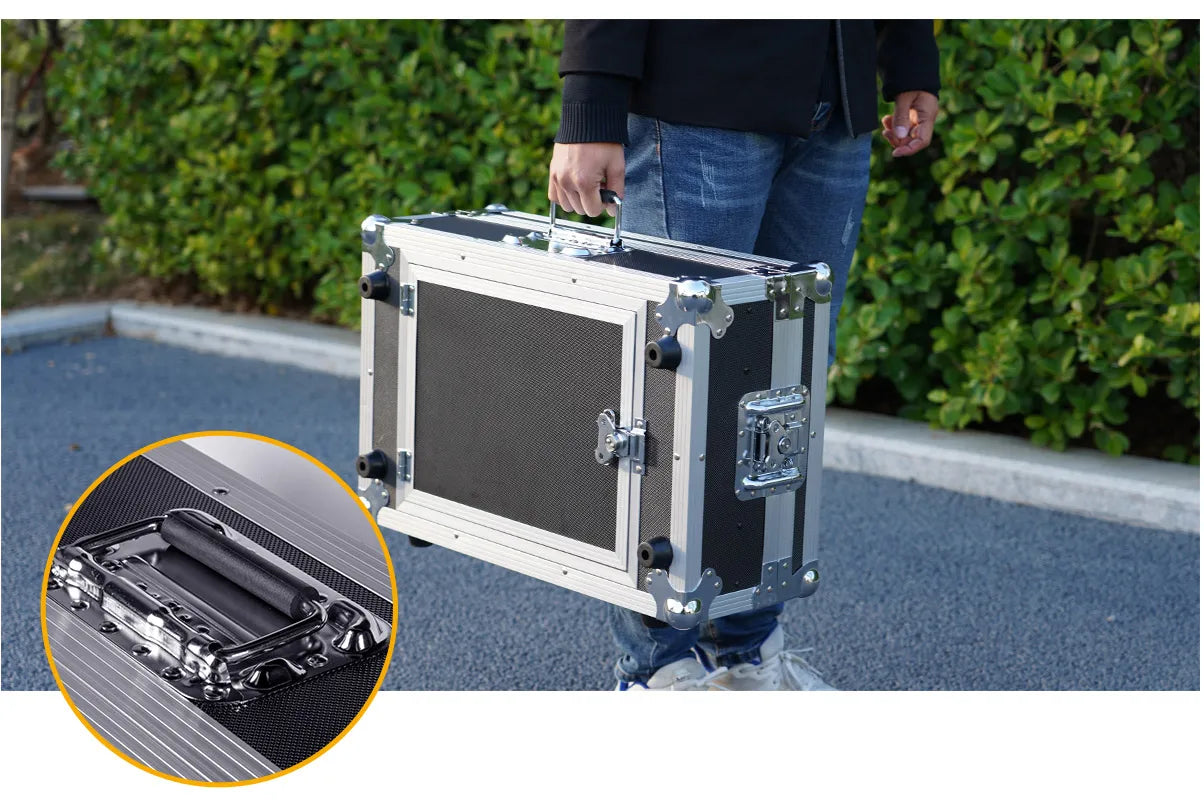

Comfortable Handle

The handle with moderate size and comfortable to hold , effectively relieve the weight-bearing feeling caused by the movement of the device,easy to carry.

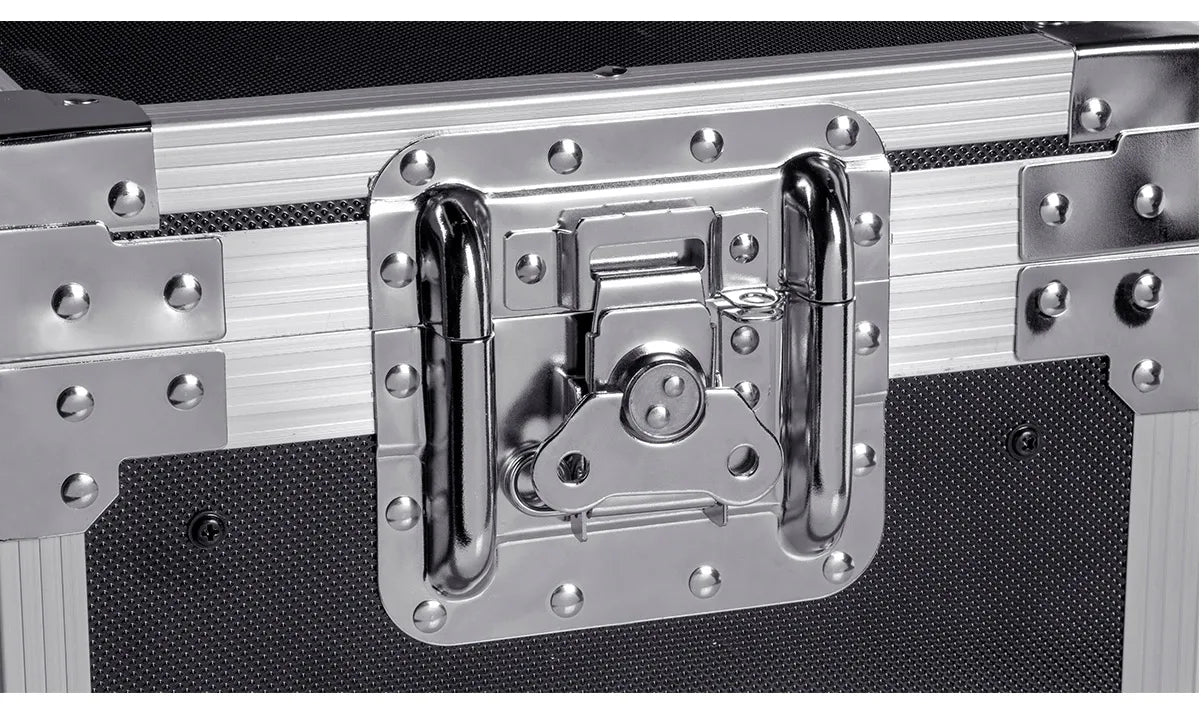

Beautiful Butterfly Shape Lock

Both the case links and the front and rear covers are adopt beautiful butterfly shape locks,durable and good looking.

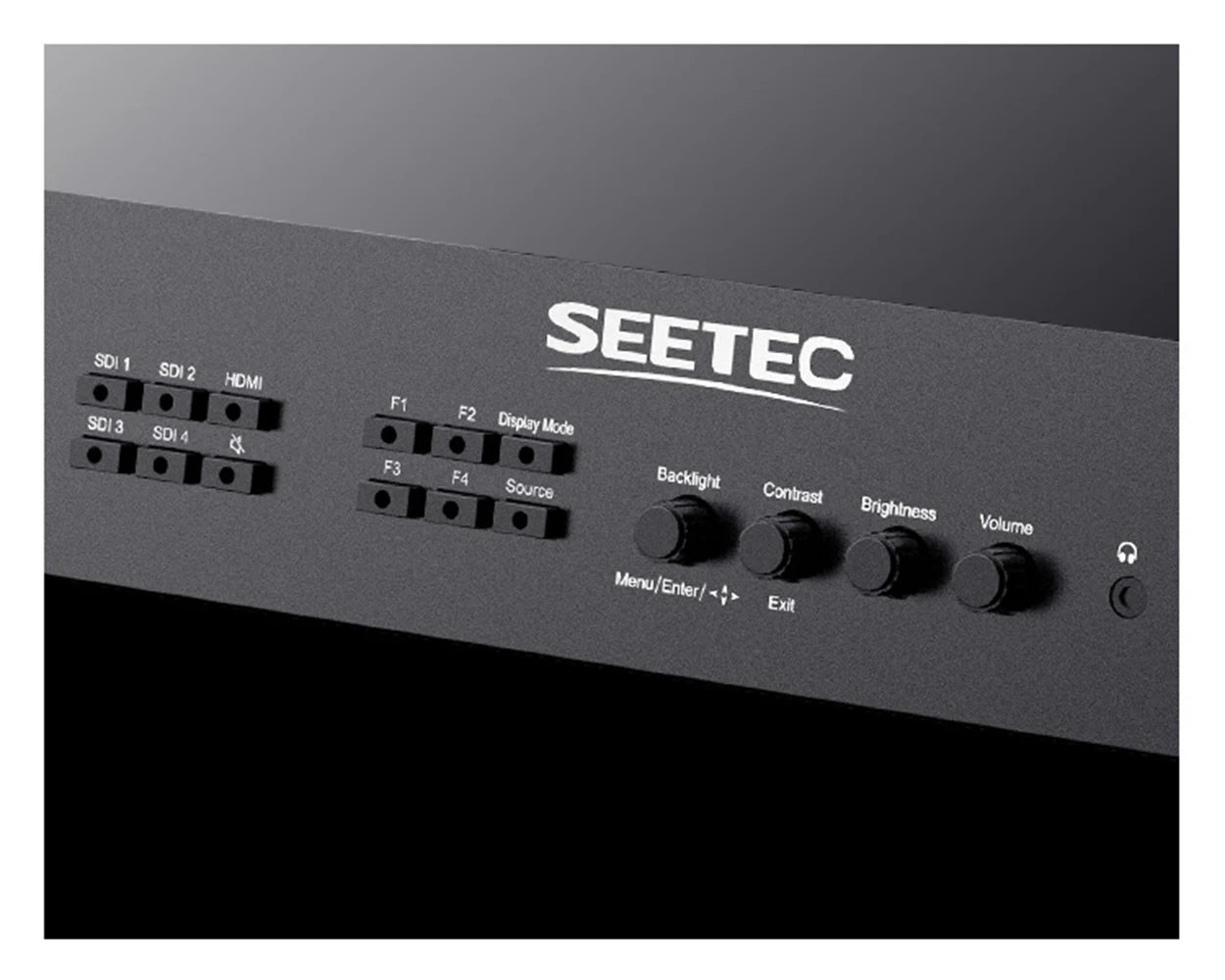

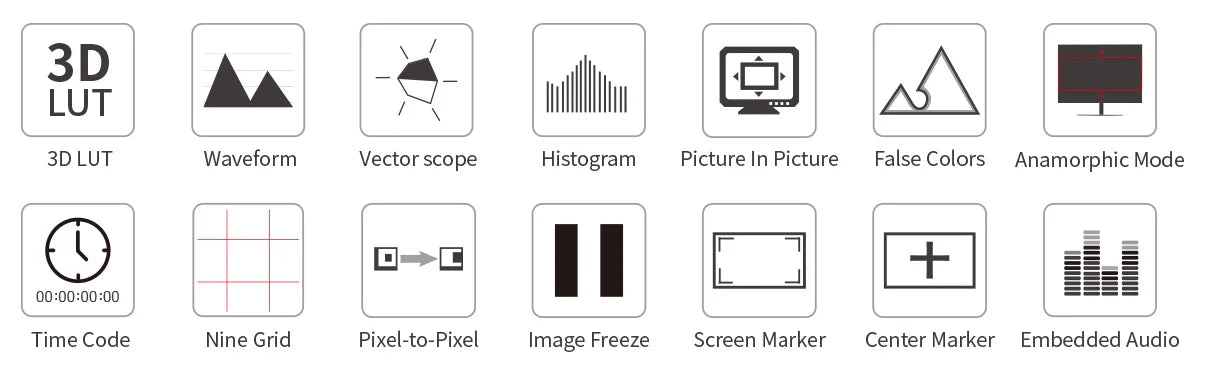

Professional On Set Monitoring Tools

Accurately focus and efficient monitoring

The monitor provides a series professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vectorscope, audio meter, time code, anamorphic mode, etc. All of functions can easy to select and operate from menu, also can set shortcut button or via GPI control. Effectively improve the efficiency of on-site shooting and post-production.

3D LUT, Recreate Film Looks

Supports up to load 36 custom LUTs

3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36).

HDR Monitoring

What you see is what you get

Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.

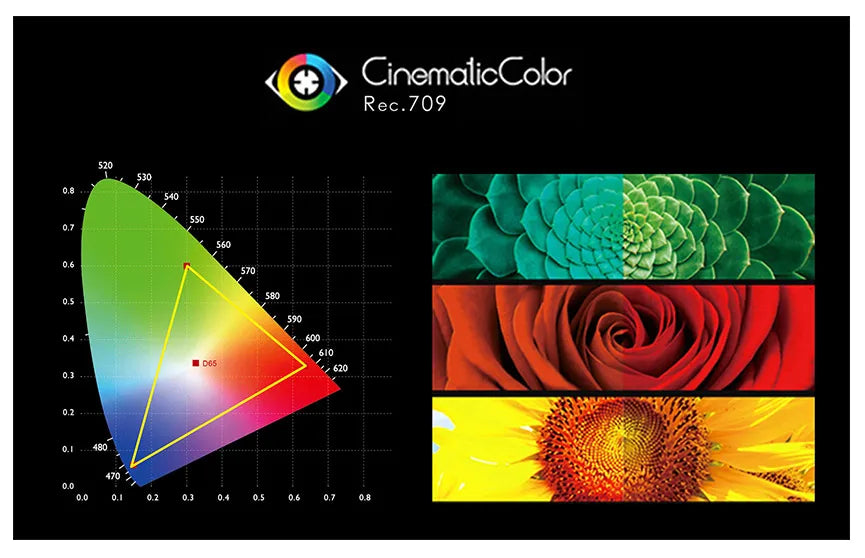

Accurate Color Reproduction

Use Rec.709 color standard

Accurate color reproduction is one of the important indicators for measuring professional monitors. ATEM215S-CO built-in 3D-LUT, adopts the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory to ensure the consistency of color reproduction of each monitor.

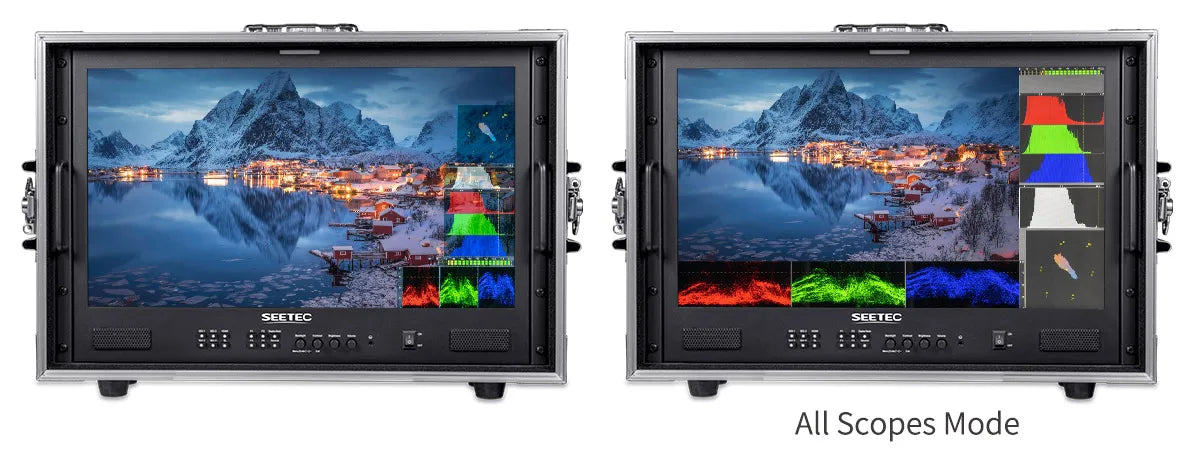

Accurate waveform monitoring

Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode (can be right/left adjustment). ATEM215S-CO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

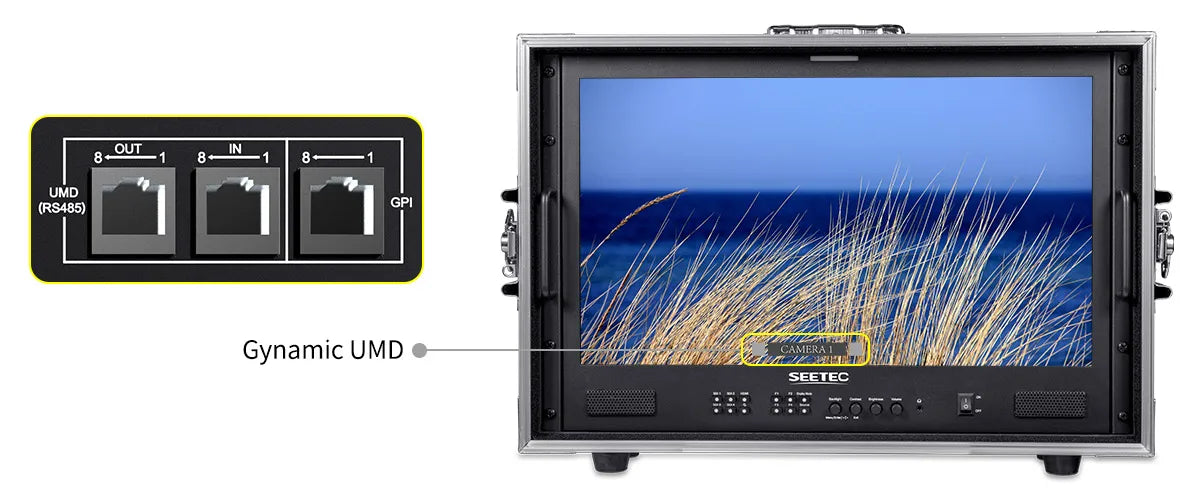

Gynamic UMD

TSL3.1/4.0 Protocol

ATEM215S-CO supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

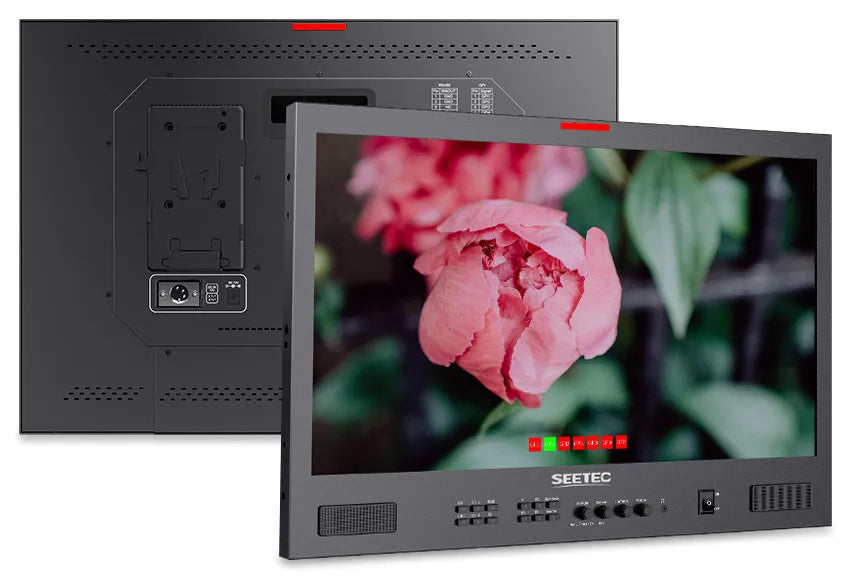

Tally Lights

GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.

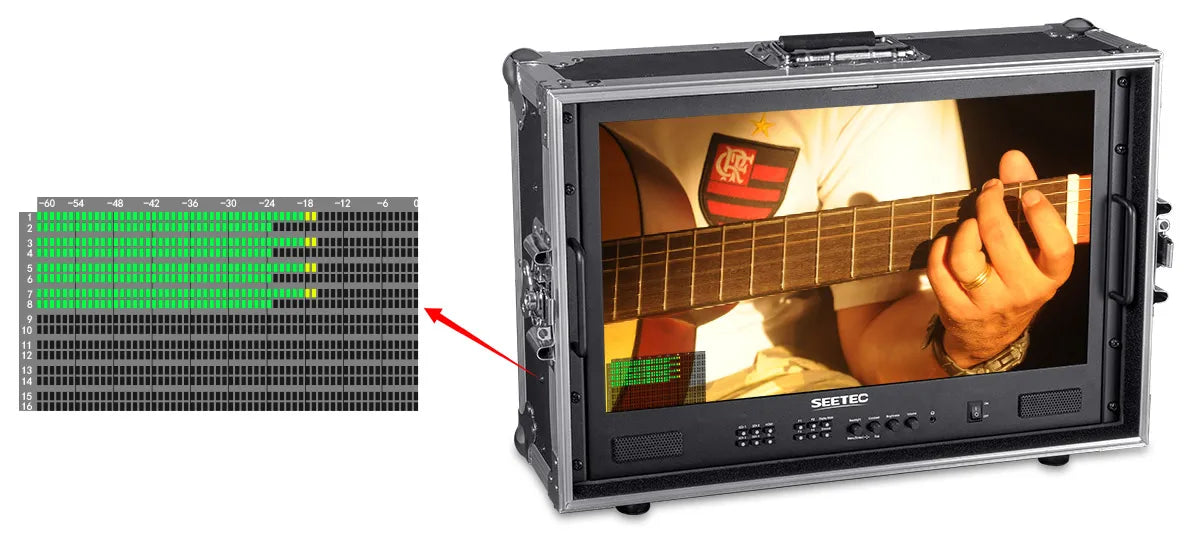

16-Channel Audio Level Meters

The monitor can de-embedded audio from SDI and HDMI. Support select any 2 channels audio to output via 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported.

Application for various environments

No matter the environment of cold snow or hot desert and so on, the ATEM215S-CO can easily handle.

Standard Accessories:
1×12V/4A Power Adapter
1× SDI Cable
1× Mini HDMI Cable
1× V-mount Battery Plate (default to mount on device)
1× Sunshade
1× Aluminium Case
1× User Manual

Noted: Battery and power cord are not included. They need to be bought seperately.
